Meols · Family home · Single-storey rear extension
CompletedRear extension with enlarged kitchen and dining space
The development provides additional ground floor accommodation, improves the functionality of the property and creates a more open and modern living environment while respecting the character and appearance of the existing house.
Project images

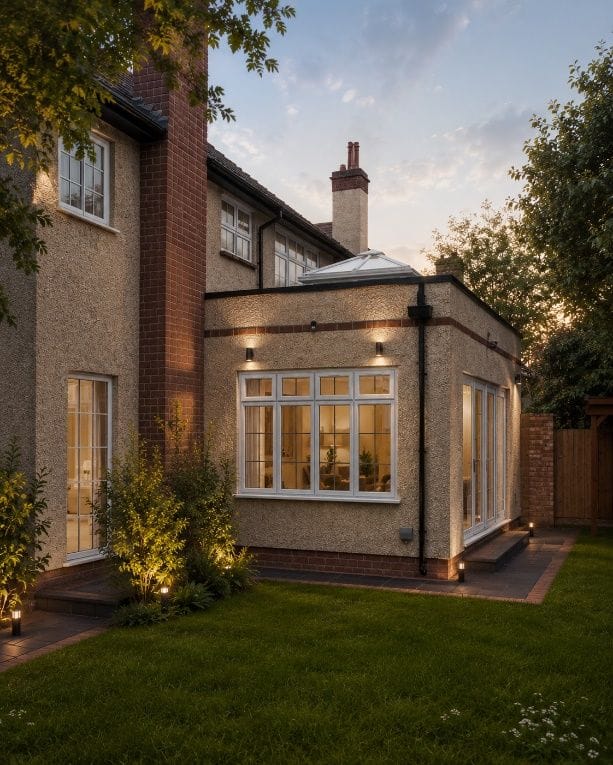

Design visualisationOur design response
A single-storey rear extension designed with a scale and form that complements the existing dwelling and maintains a clear visual hierarchy between the original property and the new addition. Large glazed openings to the rear elevation maximise natural light and provide stronger visual and physical connections to the garden, and the roof design keeps the extension visually subordinate to the main house while providing adequate internal headroom. External materials were selected to complement the existing property and may include rendered external wall finishes to match, matching roof tiles, powder-coated aluminium or uPVC windows and doors, matching fascias, soffits and rainwater goods, and a parapet wall with flat roof.
Planning route
Whether a single-storey extension of this kind needs full planning permission or falls within permitted development depends on its size, position and the property itself — we establish the route for each project and confirm it with the local authority before anything is submitted.
Building regulations
A full set of building-regulations drawings was prepared, covering the structure, insulation specifications, drainage layout and specification, windows and glazing, foundation details, floor, wall and roof build-ups, internal partitions and waterproofing, coordinated with a structural engineer.
Drawings prepared
- Measured building survey
- Existing ground & first floor plans
- Existing rear & side elevations
- Demolition ground floor plan
- Demolition rear & side elevations
- Proposed ground floor plan
- Proposed roof plan
- Proposed rafter plan
- Proposed rear & side elevations
- Proposed section details
- Proposed technical construction details
- Proposed drainage plan & details
- Proposed building regulations specification sheets
Outcome
The outdated rear projection is replaced with a more functional and attractive extension providing valuable additional living space, increased natural daylight and improved connectivity to the rear garden. The scale, form and materials respect the character of the host property.

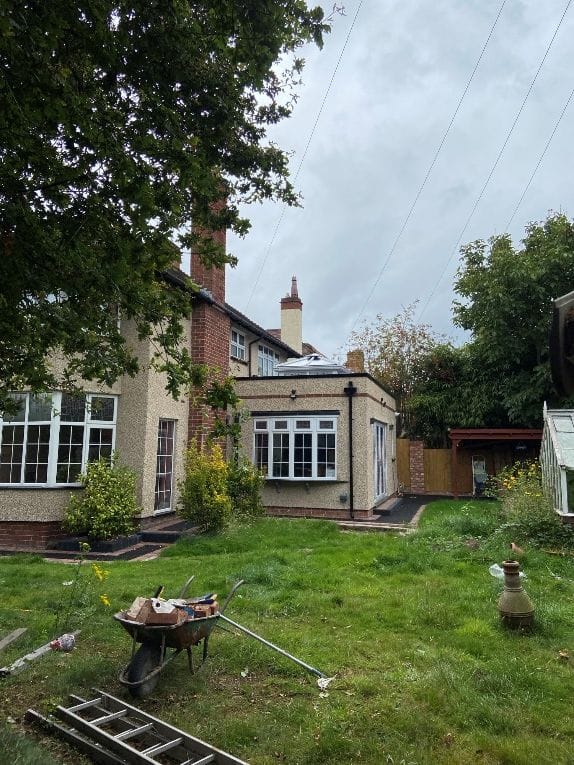

Photos show the real project — designed by SC Design Wirral and built by the homeowner's own builder. Images labelled “Design visualisation” show the proposed design, not a photograph of a finished build.
