Prenton · Family home · Rear extension & loft conversion
Under constructionBrick rear extension and loft conversion
The proposal enhances the overall usability of the dwelling by creating a bright, open-plan environment better suited to modern family living, with an improved connection to the rear garden.

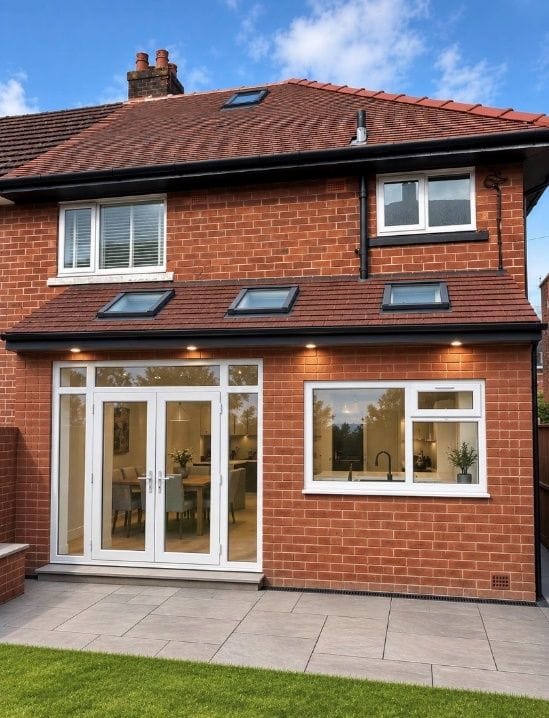

Design visualisationProject images
Design visualisationOur design response
The extension complements the existing dwelling through matching brickwork, roof materials and traditional proportions. External walls use facing brickwork selected to closely match the existing property, creating a seamless transition between the original dwelling and the new extension, and the roof uses complementary tiles for visual consistency. Key features include a single-storey rear extension, a mono-pitched tiled roof, three rooflights incorporated into the roof plane, large glazed French doors providing direct garden access, a feature kitchen window overlooking the rear garden, matching facing brickwork, white framed windows and doors to complement the existing dwelling, and integrated soffit lighting to the rear elevation.
Planning route
Whether a single-storey extension of this kind needs full planning permission or falls within permitted development depends on its size, position and the property itself — we establish the route for each project and confirm it with the local authority before anything is submitted.
Building regulations
A full set of building-regulations drawings was prepared, covering the structure, insulation specifications, drainage layout and specification, windows and glazing, foundation details, floor, wall and roof build-ups, internal partitions and waterproofing, coordinated with a structural engineer.
Drawings prepared
- Measured building survey
- Existing ground & first floor plans
- Existing rear & side elevations
- Demolition ground floor plan
- Demolition rear & side elevations
- Proposed ground floor plan
- Proposed roof plan
- Proposed rafter plan
- Proposed rear & side elevations
- Proposed section details
- Proposed technical construction details
- Proposed drainage plan & details
- Proposed building regulations specification sheets
Outcome
This project is under construction and new images will appear here in future. The development will provide a spacious open-plan kitchen, dining and family area while improving natural light levels and strengthening the connection to the rear garden.
Photos show the real project — designed by SC Design Wirral and built by the homeowner's own builder. Images labelled “Design visualisation” show the proposed design, not a photograph of a finished build.
